Surface mount Aluminium electrolytic capacitors

Requirement		Series	Lead	Feature, Application of Purpose					Voltage Range(V)	Capacitance Range(㎌)	Temperature Range(℃)	Page
Requirement		Series	Lead	Feature, Application of Purpose					Voltage Range(V)	Capacitance Range(㎌)	Temperature Range(℃)	Page
	General	CS	Chip	85℃, SMD Type, 2Khrs		●			6.3~50	4.7~1000	-40~85	22
		CM	Chip	85℃, Standard, SMD Type, 2Khrs	●	●			6.3~50	4.7~1000	-40~85	22
		CU	Chip	105℃, SMD Type, 2Khrs		●			6.3~50	0.1~1000	-40~105	24
		CUH	Chip	105℃, Standard, SMD Type, 2Khrs	●	●			6.3~50	0.1~1000	-40~105	24
		CZ	Chip	105℃, Low Z(ESR), SMD Type, 2Khrs			●		6.3~50	1~1500	-55~105	26
		CZX	Chip	105℃, Low Z(ESR), SMD Type, 2Khrs		●	●		6.3~50	1~1500	-55~105	26
		CW	Chip	105℃, Long Life, SMD Type, 5Khrs				●	6.3~50	0.1~680	-40~105	28

Miniature Aluminium electrolytic capacitors

Requirement		Series	Lead	Feature, Application of Purpose					Voltage Range(V)	Capacitance Range(㎌)	Temperature Range(℃)	Page
Requirement		Series	Lead	Feature, Application of Purpose					Voltage Range(V)	Capacitance Range(㎌)	Temperature Range(℃)	Page

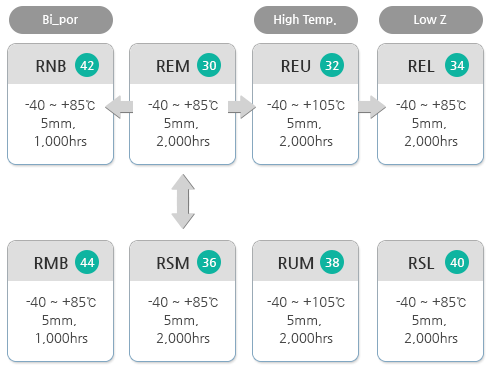

	General	REM	Radial	85℃, 5mm Height, 2Khrs		●			4~50	0.1~100	-40~85	30
		REU	Radial	105℃, 5mm Height, 2Khrs		●			4~50	0.1~100	-40~105	32
		RSM	Radial	85℃, 7mm Height, 2Khrs		●			6.3~50	0.1~470	-40~85	36
		RUM	Radial	105℃, 7mm Height, 2Khrs		●			6.3~50	0.1~100	-40~105	38
		RSS	Radial	85℃, Standard, 2Khrs		●			6.3~500	0.1~15000	-40~85	52
		RM	Radial	85℃, Miniature, 2Khrs	●				6.3~500	0.47~15000	-40~85	54
		RUS	Radial	105℃, Standard, 2Khrs		●			6.3~500	0.1~15000	-40~105	56
		RMU	Radial	105℃, Miniature, 2Khrs	●				6.3~500	0.47~15000	-40~105	58

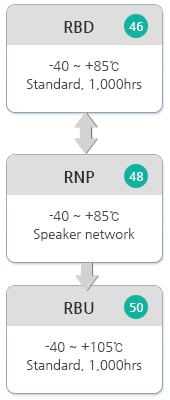

	Bi-Polar	RNB	Radial	85℃, 5mm Height, 1Khrs		●			6.3~50	0.1~47	-40~85	42
		RMB	Radial	85℃, 7mm Height, 1Khrs		●			6.3~50	0.1~47	-40~85	44
		RBD	Radial	85℃, Standard, 1Khrs		●			6.3~250	0.47~6800	-40~85	46
		RNP	Radial	85℃, Low Dissipation, 1Khrs			●		25~50	1~100	-40~85	48
		RBU	Radial	105℃, Standard, 1Khrs				●	6.3~100	0.47~1000	-40~105	50
	Low Z	REL	Radial	105℃, 5mm Height, 2Khrs		●	●		4~35	0.1~1000	-40~105	34
		RSL	Radial	105℃, 7mm Height, 2Khrs		●	●		6.3~50	0.1~100	-40~105	40

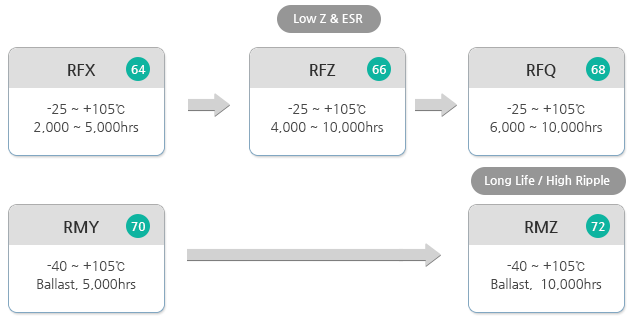

		RFX	Radial	105℃, 2K~5Khrs		●	●		6.3~100	1~8200	-40~105	64
		RFZ	Radial	105℃, 4K~10Khrs			●	●	6.3~100	10~18000	-40~105	67
		RFQ	Radial	105℃, 6K~10Khrs			●	●	6.3~100	8.2~8200	-40~105	69
		RMH	Radial	85℃, Ballast, 2Khrs			●		350~400	0.47~100	-25~85	60
		RMX	Radial	105℃, Ballast, 2Khrs			●		160~500	2.2~330	-40~105	62
		RMY	Radial	105℃, Ballast, 5Khrs		●	●		160~500	2.2~330	-40~105	71
		RMZ	Radial	105℃, Ballast, 10Khrs			●	●	160~500	2.2~330	-40~105	73

Large Sized Aluminium electrolytic capacitors

Requirement		Series	Lead	Feature, Application of Purpose				Voltage Range(V)	Capacitance Range(㎌)	Temperature Range(℃)	Page
Requirement		Series	Lead	Feature, Application of Purpose				Voltage Range(V)	Capacitance Range(㎌)	Temperature Range(℃)	Page
	High- Power	FHS	Snap-in	85℃, Standard, 2Khrs		●		16~500	47~47000	-40~85	75
		FHY	Snap-in	85℃, Miniature, 2Khrs	●			160~500	56~2700	-40~85	78
		FHT	Snap-in	85℃, Long Life, 2Khrs			●	160~500	56~2700	-40~85	80
		FUH	Snap-in	105℃, Standard, 2Khrs		●		10~500	47~47000	-40~105	82
		FUX	Snap-in	105℃, Miniature, 2Khrs	●			160~500	56~2200	-40~105	85
		FUZ	Snap-in	105℃, Ultra Miniature, 2Khrs	●			160~500	68~2200	-40~105	87
		FUT	Snap-in	105℃, Long Life, 3Khrs			●	160~500	56~2200	-40~105	89
		FUL	Snap-in	105℃, Long Life, 5Khrs			●	160~500	47~1200	-40~105	91
		FUM	Snap-in	105℃, Long Life, 7Khrs			●	160~500	47~2200	-40~105	93
		PSA	Screw	85℃, Standard, 2Khrs		●		10~500	180~680000	-40~85	95
		PI	Screw	85℃, Long Life, 5Khrs			●	315~500	1500~18000	-25~85	98
		PSL	Screw	85℃, Long Life, 20Khrs			●	400	4700~8200	-25~85	100
		PUH	Screw	105℃, Standard, 2Khrs		●		10~450	220~680000	-40~105	105
		PUL	Screw	105℃, Long Life, 5Khrs			●	250~450	220~10000	-25~105	108

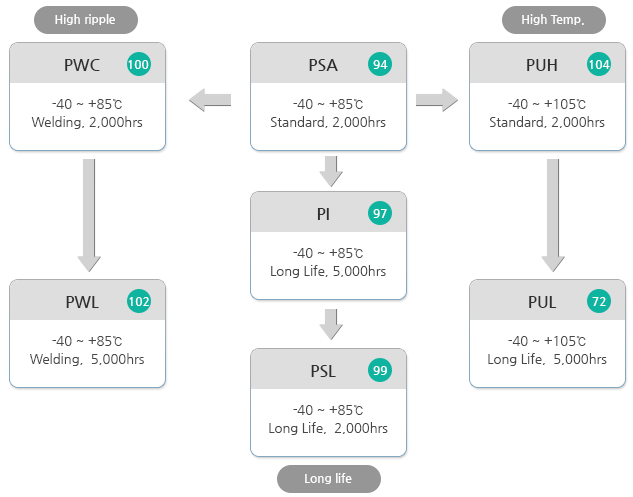

	Special	PWC	Screw	85℃, High Ripple, 2Khrs	●			315~400	560~6800	-25~85	101
	Special	PWL	Screw	85℃, High Ripple, 5Khrs			●	315~400	560~6800	-25~85	103
